Roadmaps to a common destination: Decarbonization of energy systems

19 July 2022, By Nikos Hatziargyriou, Rainer Bacher, Mark McGranaghan, Mingli Fu, John Ward

Roadmaps to a common destination: Decarbonization of energy systems



Introduction


This paper summarizes the contributions of 4 distinguished experts, who present the decarbonization goals of the energy systems in Europe, USA, China and Australia at the CIGRE/ETIP SNET panel in August 2021. The presentations include the status of the energy systems, the main challenges faced in advancing their transition, set time-schedules and milestones for achieving transition goals, and the research and innovation requirements and plans to tackle them. Specific research programmes announced or planned are briefly described. In all contributions, it is clearly shown that the vision of energy decarbonization is shared among all parts. The challenges in energy system transition are similar and despite the differences due to particular regional characteristics, the steps to the common destination are broadly aligned. The R&I challenges are also similar, highlighting the value of exchanging knowledge and experiences about the way the energy transition is planned and realized at international level, especially among leading countries that share the common vision of energy systems decarbonization.



Rainer Bacher (Europe)


In July 2021, the European Commission has set the goals for the Energy Systems, named FIT for 55. This refers to the preparation of the system to achieve 55% reduction of greenhouse gas emissions in the interval 1990-2030 and minimal greenhouse gases by the year 2050. 65% of tertiary sector heating will be covered by electricity, the use of natural gas should be far below 20%, and road transportation mainly by electric vehicles and carbon renewable electric cars. This creates stress on the electricity distribution network by peaks that need to be managed. What is also very important is that citizens and consumer communities must be activated. Hydrogen and biofuels should be used in the proper way, and requires that the right amounts of clean hydrogen and biofuels are produced in the system. New seasonal storage solutions are required, not only batteries but further in gases.



Roadmaps to a common destination: Decarbonization of energy systems

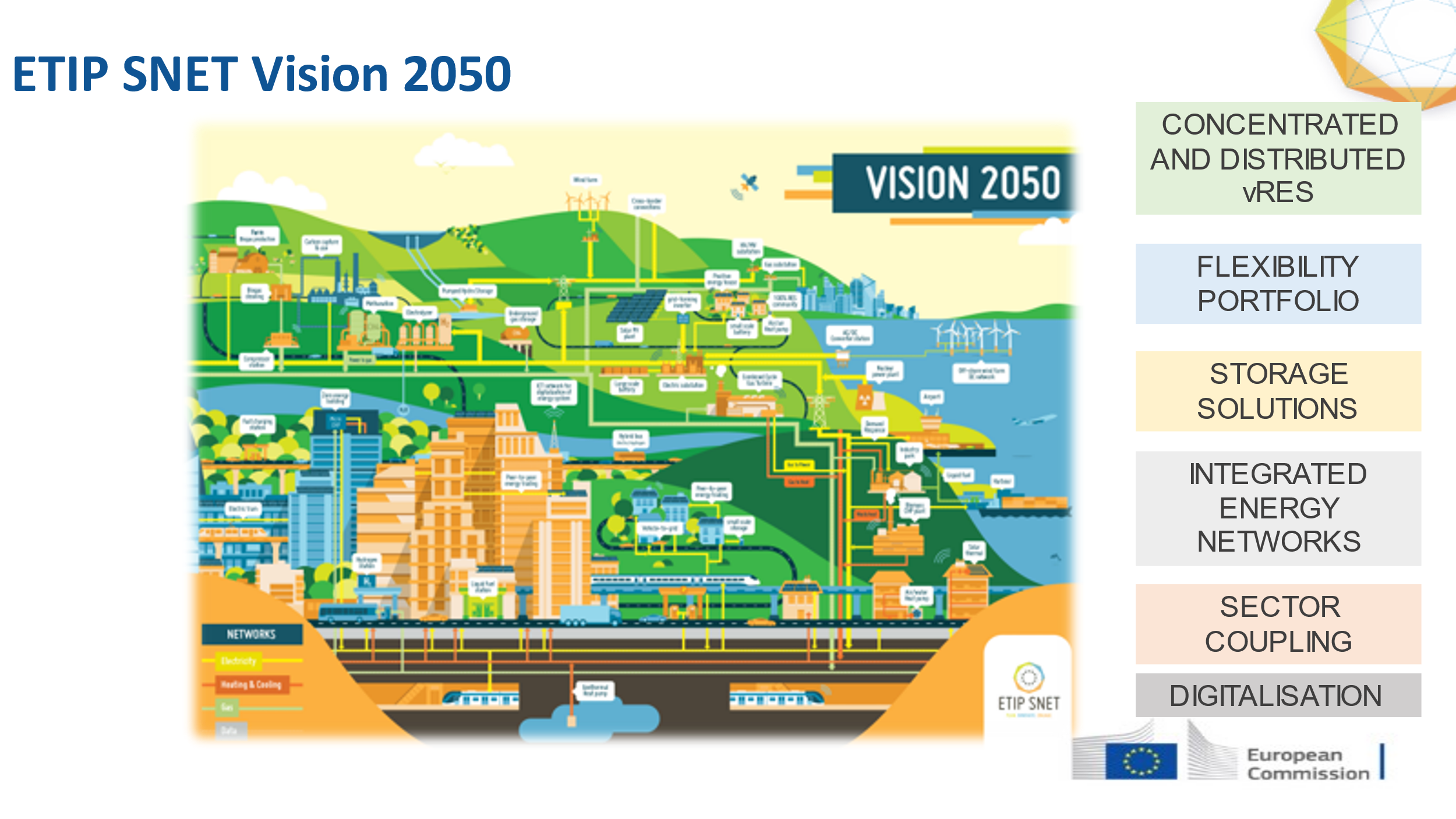

Figure 1 - ETIP SNET Vision 2050



ETIP SNET is the European technology platform for Smart Networks for Energy Transition. Fig. 1. presents the overview slide of the ETIP SNET Vision for 2050, published in 2018. The future energy system is depicted as an integrated energy system, with many components and interconnected networks, not only for electricity, but also heating and cooling, gas, and data networks. The policy directions in Europe see the prosumer in the center, who needs to be engaged as an active prosumer. Around him/her operate markets, communication, and digital infrastructure and at the bottom, the key-component, the physical energy system. The electricity networks are interconnected with gas, heating and cooling, transport and storage networks: they form the backbone of the integrated physical energy system due to their efficiency and flexibility. The building blocks shown in Fig. 1. are the ingredients of ETIP SNET’s vision for 2050, the R&I Roadmap for 2020-2030 and the R&I Implementation plan for the next 4 years.

On-going research in Europe is managed in a huge R&I program, the Horizon Europe, that includes energy. In the period 2021-2027, almost 100 billion euros are devoted for research and innovation, 15 billion euros of which are devoted to Climate, Energy and Mobility.



Mark McGranaghan (USA)



In the USA, the electricity network is the backbone of the integrated energy system and electricity is the energy resource for other energy systems, especially transportation and heat. The important research challenges faced by the US system:

  • Providing the right grid architecture. There is significant work around the world from a platform point of view that involves a secure communication infrastructure for its implementation.
  • Markets are the foundation. Innovations, new regulatory approaches, and market mechanisms are required to provide the flexibility and capacity along the electrical energy.
  • A key aspect of this infrastructure is that planning, and operation become integrated and the models to support this integration include customer behavior, distributed controls for distributed energy storage and virtual power plants. Using these models one can design and implement electricity networks, as efficiently as possible. This is called non-wires alternatives.
  • Integrating distributed resources and customers with operations is a big challenge.



To solve these challenges, FERC (Federal Energy Regulatory Commission) put out an order called “order 2222” that requires wholesale markets to integrate distributed resources. This is a very big collaborative project that is currently in a phase of requirements definitions.

In the USA there are already challenges to maintain the reliability and resilience of the electricity network. The penetration level of renewables is in the 20 to 30% range going up to raising penetration levels to 75% to 80% and then 85% to 90% and specify the operational requirements for these systems presents great challenges. The resilience issues caused by polar vortex in Texas (2021), and during the recent hot summer in California, are characteristic examples.  A big part of the solution is through the engagement of the customer, the community and distributed resources, making them part of the equation for reliability and resiliency. The US  2030 goals can be summarized as clean up electricity, wide electrification, and assurance that the grid can handle it. The longer term of reaching no emissions requires to find alternative low carbon fuels.

Figure 2. provides a summary of the US current position: continuing to develop clean energy resources for the electric system and building the electric system that can support this development in the longer term. It will also involve integration of hydrogen and other clean fuels. At the same time, the grid and markets are going to maintain reliability and resiliency.  The way to make it possible and affordable is through digital transformation (sensors, communication infrastructure).

Roadmaps to a common destination: Decarbonization of energy systems

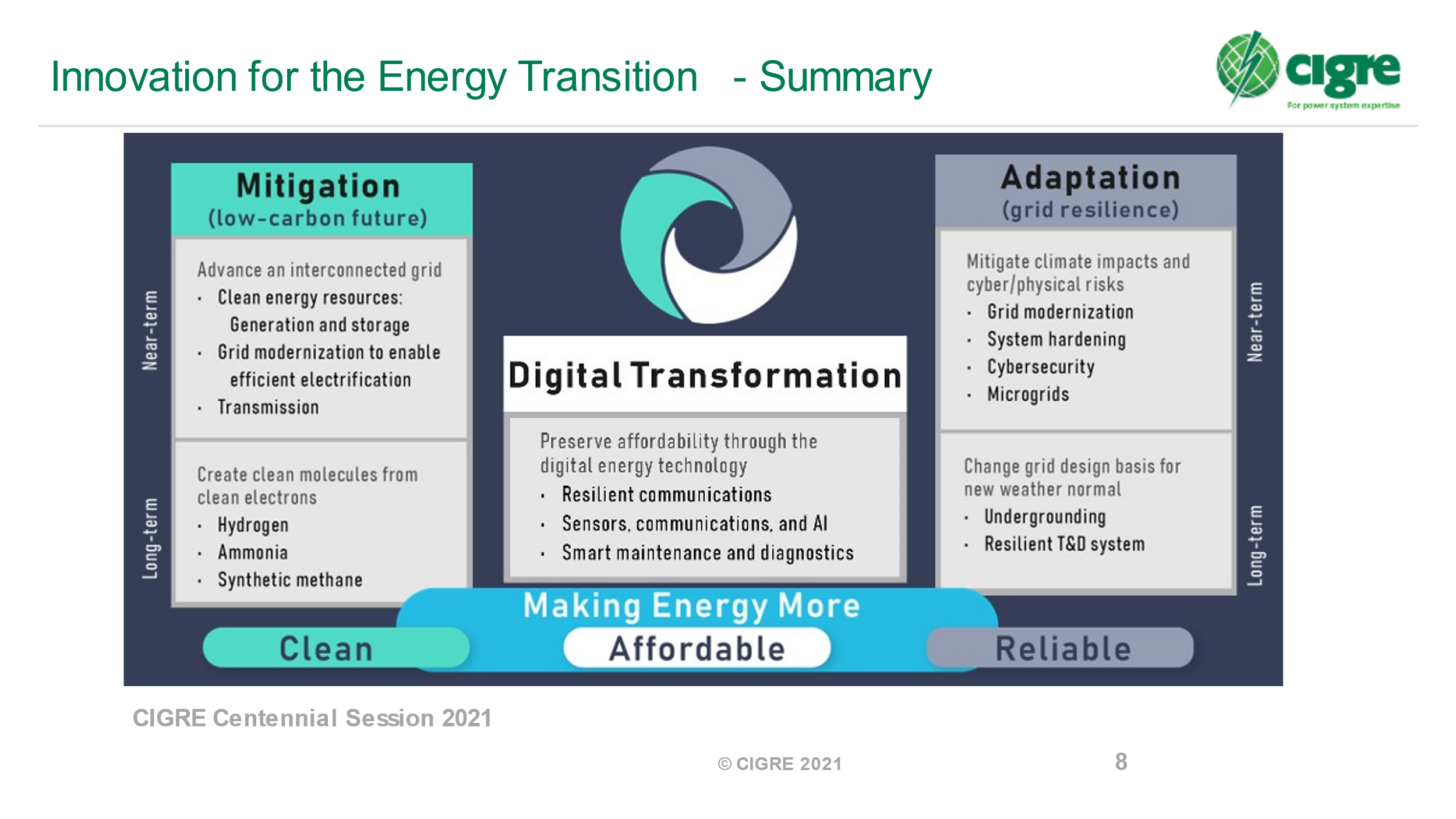

Figure 2 - Summary of innovation for US Energy transition



Mingli FU (R.China)


During the United Nation General Assembly in September 2020, China’s president Xi Jinping announced, that China is going to reach the carbon peak by 2030 and achieve neutrality by 2060. The most important parts of the plan concerns building a clean, low-carbon, safe and efficient energy system. CSG (China Southern Grid) is going to improve the utilization efficiency, strengthen renewable energy penetration and build a New Energy Dominated Power System (NEDPS).

In 2020, CO2 emissions from energy consumption account for about 88% of the total emissions in China, from which around 42% comes from the electric power industry (Fig. 3.4). Thus, the electric power industry plays a crucial role in achieving the 2030 and 2060 targets. The CSG will make every attempt to develop a NEDPS by using digitalization and market reform.

The milestones towards the new power system by CSG comprise the following 4 steps:

  • By 2025, the basic features of the new power system will be formed. By this time there will be a significant increase of installed capacity and generation of new (renewable) energy.
  • By 2030, the new power system will take its shape.
  • By 2045 the new power system will be fully developed. The largest part of generation will come from new (renewable) energy.
  • By 2060, the new power system will be further developed and achieve carbon neutrality within CSG.





Roadmaps to a common destination: Decarbonization of energy systems

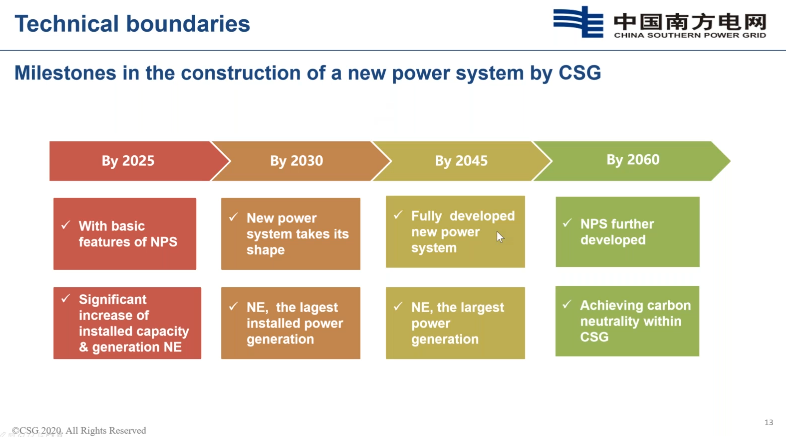

Figure 3 - Milestones towards the new power system by CSG



Challenges in guaranteeing power supply are:

  • Traditional power system: With controllable units the power generation capacity matches the load variations; to ensure power balance during the maximum load period.
  • New power system: the power generation output is affected by natural conditions, uncontrollable, and difficult to match the load.
  • The risk of system stability
  • Consecutive days of low output, a serious impact on the continuous power supply



The R&I Challenges toward building a new power system are:

  1. Large-scale economic storage application technology
  2. New energy adapted to multi-business scenarios of comprehensive, measurable and controllable technology
  3. Probabilistic power balance technology on different time scales
  4. Inter-inertia assessment and frequency control technology of the new power system
  5. Harmonic wave and oscillation suppression technology of high-power electronic system
  6. Panoramic simulation technology of large-scale new energy system
  7. Network configuration control technology of electric power electronic converter equipment
  8. Electric-carbon linkage operation technology and market mechanism



John Ward (Australia)



Australia’s goals are to achieve an affordable, reliable energy while realizing a transition to a low emission future. For this, the system’s security, reliability and strength towards this transition needs to be ensured. The short-term goal up to 2025, is that the system operators are confident to run the energy system with an instantaneous 100% renewable energy sources penetration.

The challenges towards this goal are:

  • Declining minimum demand
  • Accelerating uptake of variable renewable energy resources
  • Reduction in synchronous generation



After achieving   the short- term goal, i.e., the challenge of secure and reliable operation with higher RES penetration, the path towards 2050 includes doubling of the electricity system throughput based on the electrification of Australian industries and of the transport sector. Aiming at a level of hydrogen exports, like the current exports of fossil-based fuels, means a factor of 5-fold increase in the energy throughput of the electricity system, since electricity coming from large scale Renewables will be the energy vector for hydrogen production.



The next challenge after system security, is the way to improve the utilization of system, achieving much higher throughput of energy with the minimum upgrades in the transmission and distribution systems. This can be achieved by coordinating energy generation and loads through digitalization and consumer involvement.

In summary, three key points need to be considered:

  • Reliable secure system (a system operator challenge)
  • Improving the utilization of networks (to get high energy throughput)
  • Achieving high Renewable energy exports



Roadmaps to a common destination: Decarbonization of energy systems

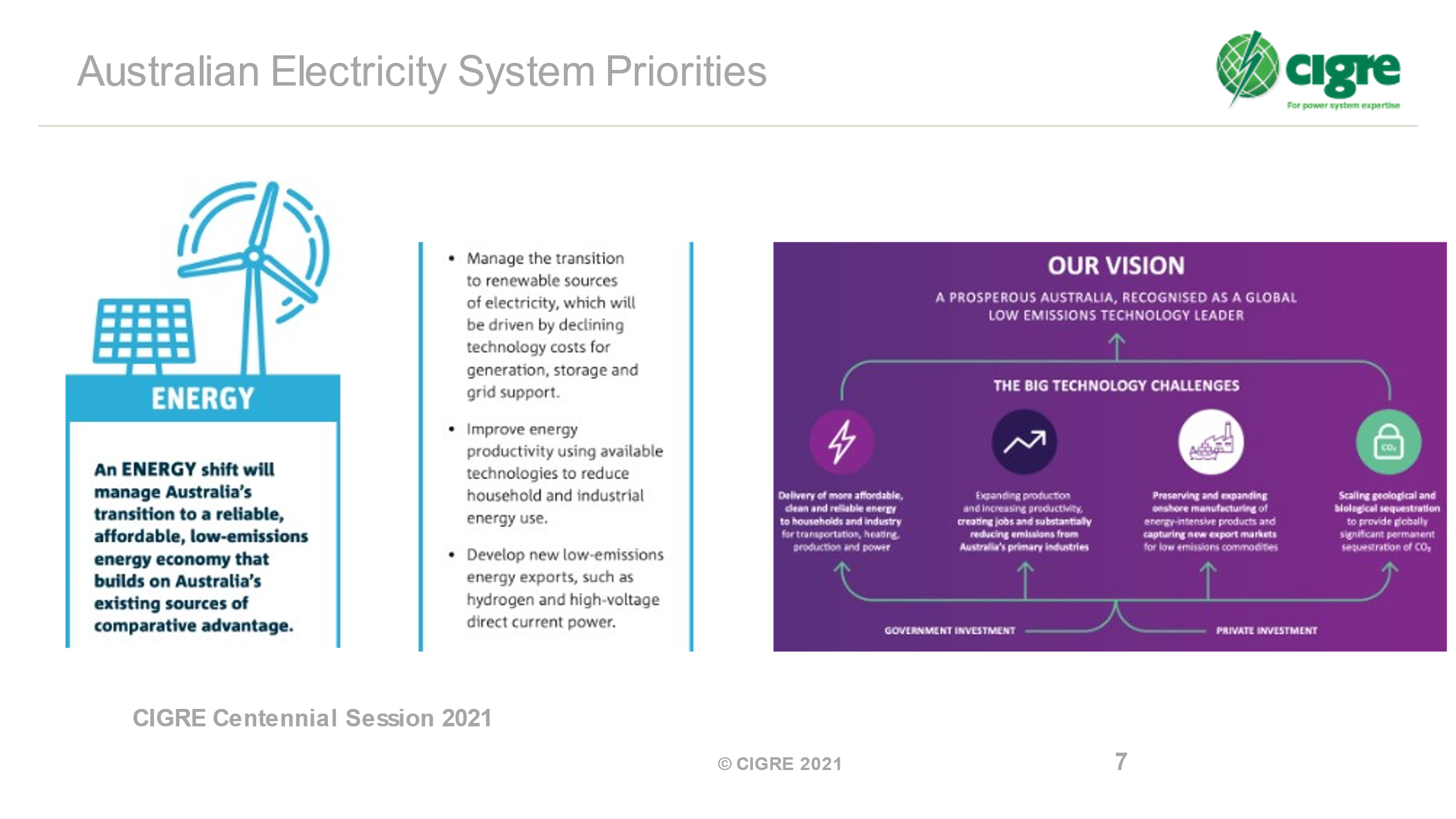

Figure 4 - Australian Electricity System Priorities





In terms of timing, 2025 is the target for being able to run on 100% (instantaneous) renewables on the system. By 2030, the decarbonization targeted and committed to is at least 26% compared to the 2005 level, however it is expected that this will reach the level of 30% by 2030. The goal for 2050, is not yet as firmly committed, but is to be net-zero.


There are six key R&I challenges being tackled:

  • Inverter design
  • Stability Tools & Methods
  • Control Room of the Future
  • Planning
  • Restoration & Black Start
  • System Services


The very sparse networks with very high levels of distributed PVs in Australia impose three additional challenges:

  • System Architecture
  • DER (Distributed Energy Resources)
  • System Stability and reliability achieved through the responses of DER







About ETIP SNET



Roadmaps to a common destination: Decarbonization of energy systemsSince 2016, the key energy system players in Europe, represented through their EU associations, platforms and national stakeholders, started a strong and unique cooperation under the umbrella of ETIP SNET. With the support of hundreds of industry and research experts throughout Europe, it guides European R&I activities in the area of Smart Energy Networks. This covers areas such as energy systems management, storage and interface between power, gas, heat or transport networks, flexible generation, digitalisation of the energy systems, and energy customer involvement. Learn more > (https://www.etip-snet.eu/)
